Initialisation bias

Learning objectives:

• Understand initialisation bias and know options for handling it.
• Add a warm-up period to a model.

Pre-reading:

This page continues on from: Entity processing.

Entity generation → Entity processing → Initialisation bias

Required packages:

These should be available from environment setup in the “🧪 Test yourself” section of Environments.

import numpy as np
import simpy
from sim_tools.distributions import Exponential

library(dplyr)
library(simmer)

🧊 Initialisation bias

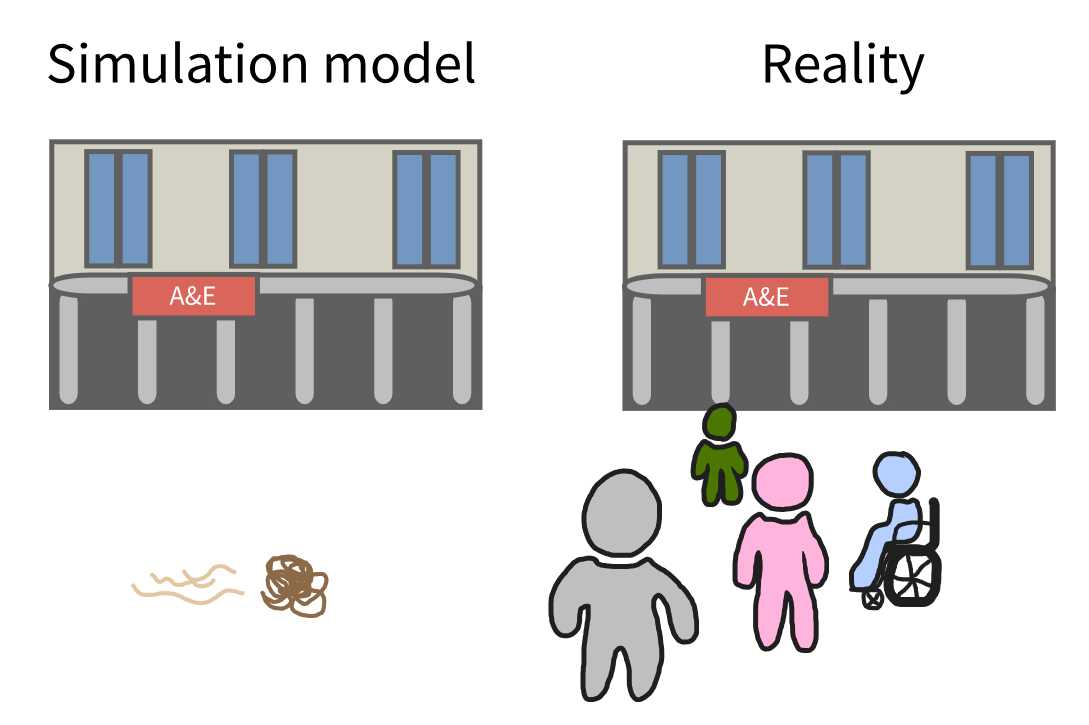

Initialisation bias happens in discrete event simulation when the model starts in an “empty” state that does not match how the real system normally operates.

For systems that naturally begin empty (like a clinic opening each morning), this is fine. However, for many systems that are usually already busy, starting empty skews the results at the beginning of a run. For example, making waiting times, queue lengths or resource use look lower than they would be in reality.

There are two main strategies for addressing initialisation bias:

• Initial conditions: Start the model with some entities or resources already presents (e.g., a certain number of patients already waiting). This can be difficult though, as it requires relevant data for determining an appropriate starting state.
• Warm-up periods: Run the model for a while until it reaches a steady state, then begin collecting results from that point onwards.

Since finding suitable initial conditions can be complicated, this book will focus on the warm-up method.

⏳ Adding a warm-up period to the model

Parameter class

The run_length parameter has been replaced by two new parameters:

• warm_up_period
• data_collection_period

class Parameters:
    """
    Parameter class.

    Attributes
    ----------
    interarrival_time : float
        Mean time between arrivals (minutes).
    consultation_time : float
        Mean length of doctor's consultation (minutes).
    number_of_doctors : int
        Number of doctors.
    warm_up_period : int
        Duration of the warm-up period (minutes).
    data_collection_period : int
        Duration of the data collection period (minutes).
    verbose : bool
        Whether to print messages as simulation runs.
    """
    def __init__(
        self, interarrival_time=5, consultation_time=10,
        number_of_doctors=3, warm_up_period=30, data_collection_period=40,
        verbose=True
    ):
        """
        Initialise Parameters instance.

        Parameters
        ----------
        interarrival_time : float
            Time between arrivals (minutes).
        consultation_time : float
            Length of consultation (minutes).
        number_of_doctors : int
            Number of doctors.
        warm_up_period : int
            Duration of the warm-up period (minutes).
        data_collection_period : int
            Duration of the data collection period (minutes).
        verbose : bool
            Whether to print messages as simulation runs.
        """
        self.interarrival_time = interarrival_time
        self.consultation_time = consultation_time
        self.number_of_doctors = number_of_doctors
        self.warm_up_period = warm_up_period
        self.data_collection_period = data_collection_period
        self.verbose = verbose

Patient class

The new attribute period stores a marker which we can use in print() messages to more easily distinguish patients who arrive in the warm-up (🔸 WU) v.s. the data collection period (🔹 DC).

class Patient:
    """
    Represents a patient.

    Attributes
    ----------
    patient_id : int
        Unique patient identifier.
    period : str
        Arrival period (warm up or data collection) with emoji.
    """
    def __init__(self, patient_id, period):
        """
        Initialises a new patient.

        Parameters
        ----------
        patient_id : int
            Unique patient identifier.
        period : str
            Arrival period (warm up or data collection) with emoji.
        """
        self.patient_id = patient_id
        self.period = period

Model class

The changes to Model are explained below…

class Model:
    """
    Simulation model.

    Attributes
    ----------
    param : Parameters
        Simulation parameters.
    run_number : int
        Run number for random seed generation.
    env : simpy.Environment
        The SimPy environment for the simulation.
    doctor : simpy.Resource
        SimPy resource representing doctors.
    patients : list
        List of Patient objects.
    arrival_dist : Exponential
        Distribution used to generate random patient inter-arrival times.
    consult_dist : Exponential
        Distribution used to generate length of a doctor's consultation.
    """
    def __init__(self, param, run_number):
        """
        Create a new Model instance.

        Parameters
        ----------
        param : Parameters
            Simulation parameters.
        run_number : int
            Run number for random seed generation.
        """
        self.param = param
        self.run_number = run_number

        # Create SimPy environment
        self.env = simpy.Environment()

        # Create resource
        self.doctor = simpy.Resource(
            self.env, capacity=self.param.number_of_doctors
        )

        # Create a random seed sequence based on the run number
        ss = np.random.SeedSequence(self.run_number)
        seeds = ss.spawn(2)

        # Set up attributes to store results
        self.patients = []

        # Initialise distributions
        self.arrival_dist = Exponential(mean=self.param.interarrival_time,
                                        random_seed=seeds[0])
        self.consult_dist = Exponential(mean=self.param.consultation_time,
                                        random_seed=seeds[1])

    def generate_arrivals(self):
        """
        Process that generates patient arrivals.
        """
        while True:
            # Sample and pass time to next arrival
            sampled_iat = self.arrival_dist.sample()
            yield self.env.timeout(sampled_iat)

            # Check whether arrived during warm-up or data collection
            if self.env.now < self.param.warm_up_period:
                period = "\U0001F538 WU"
            else:
                period = "\U0001F539 DC"

            # Create a new patient
            patient = Patient(patient_id=len(self.patients)+1,
                              period=period)
            self.patients.append(patient)

            # Print arrival time
            print(f"{patient.period} Patient {patient.patient_id} " +
                  f"arrives at time: {self.env.now:.3f}")

            # Start process of consultation
            self.env.process(self.consultation(patient))

    def consultation(self, patient):
        """
        Process that simulates a consultation.

        Parameters
        ----------
        patient :
            Instance of the Patient() class representing a single patient.
        """
        # Patient requests access to a doctor (resource)
        with self.doctor.request() as req:
            yield req

            print(f"{patient.period} Patient {patient.patient_id} " +
                  f"starts consultation at: {self.env.now:.3f}")

            # Sample consultation duration and pass time spent with doctor
            time_with_doctor = self.consult_dist.sample()
            yield self.env.timeout(time_with_doctor)

    def reset_results(self):
        """
        Reset results.
        """
        self.patients = []

    def warmup(self):
        """
        Reset result collection after the warm-up period.
        """
        if self.param.warm_up_period > 0:
            # Delay process until warm-up period has completed
            yield self.env.timeout(self.param.warm_up_period)
            # Reset results variables
            self.reset_results()
            print(f"Warm up period ended at time: {self.env.now}")

    def run(self):
        """
        Run the simulation.
        """
        # Schedule arrival generator and warm-up
        self.env.process(self.generate_arrivals())
        self.env.process(self.warmup())

        # Run the simulation
        self.env.run(until=(self.param.warm_up_period +
                            self.param.data_collection_period))

Explaining changes to the Model class…

# Check whether arrived during warm-up or data collection
if self.env.now < self.param.warm_up_period:
    period = "\U0001F538 WU"
else:
    period = "\U0001F539 DC"

# Create a new patient
patient = Patient(patient_id=len(self.patients)+1,
                  period=period)
self.patients.append(patient)

# Print arrival time
print(f"{patient.period} Patient {patient.patient_id} arrives " +
        f"at time: {self.env.now:.3f}")

...

print(f"{patient.period} Patient {patient.patient_id} " +
      f"starts consultation at: {self.env.now:.3f}")

When a patient arrives, we now check whether this occurred during the warm-up period (self.env.now < self.param.warm_up_period). Each patient is then labelled as either warm-up (🔸 WU) or data collection (🔹 DC), stored as an attribute.

The label is used when printing times, helpful for debugging and verifying event sequencing.

def reset_results(self):
    """
    Reset results.
    """
    self.patients = []

The reset_results() method clears the self.patients list once the length of the warm-up period has elapsed, so that arrivals during that time do not contribute to the results.

def warmup(self):
    """
    Reset result collection after the warm-up period.
    """
    if self.param.warm_up_period > 0:
        # Delay process until warm-up period has completed
        yield self.env.timeout(self.param.warm_up_period)
        # Reset results variables
        self.reset_results()
        print(f"Warm up period ended at time: {self.env.now}")

The warmup() process waits until the length of the warm-up period has elapsed, and then calls reset_results() to clear patient records. This ensures that data collection starts with a clean slate.

def run(self):
    """
    Run the simulation.
    """
    # Schedule arrival generator and warm-up
    self.env.process(self.generate_arrivals())
    self.env.process(self.warmup())

    # Run the simulation
    self.env.run(until=(self.param.warm_up_period +
                        self.param.data_collection_period))

In the run() method, there were two changes:

• Adding warmup() as a SimPy process using self.env.process().
• The total run time is now the sum of warm_up_period and data_collection_period.

Run the model

param = Parameters()
model = Model(param=param, run_number=0)
model.run()

🔸 WU Patient 1 arrives at time: 16.468
🔸 WU Patient 1 starts consultation at: 16.468
🔸 WU Patient 2 arrives at time: 20.283
🔸 WU Patient 2 starts consultation at: 20.283
🔸 WU Patient 3 arrives at time: 26.545
🔸 WU Patient 3 starts consultation at: 26.545
🔸 WU Patient 4 arrives at time: 27.675
🔸 WU Patient 4 starts consultation at: 27.675
🔸 WU Patient 5 arrives at time: 28.779
🔸 WU Patient 5 starts consultation at: 28.779
Warm up period ended at time: 30
🔹 DC Patient 1 arrives at time: 37.778
🔹 DC Patient 1 starts consultation at: 37.778
🔹 DC Patient 2 arrives at time: 38.108
🔹 DC Patient 2 starts consultation at: 38.108
🔹 DC Patient 3 arrives at time: 42.611
🔹 DC Patient 4 arrives at time: 44.088
🔹 DC Patient 3 starts consultation at: 47.598
🔹 DC Patient 5 arrives at time: 55.588
🔹 DC Patient 4 starts consultation at: 56.662
🔹 DC Patient 5 starts consultation at: 57.389
🔹 DC Patient 6 arrives at time: 64.880
🔹 DC Patient 6 starts consultation at: 64.880
🔹 DC Patient 7 arrives at time: 64.954

Parameter function

The run_length parameter has been replaced by two new parameters:

• warm_up_period
• data_collection_period

Also, verbose is now set as FALSE as warmup we dont do on those we do on results so focusing on that

#' Generate parameter list.
#'
#' @param interarrival_time Numeric. Time between arrivals (minutes).
#' @param consultation_time Numeric. Mean length of doctor's
#'   consultation (minutes).
#' @param number_of_doctors Numeric. Number of doctors.
#' @param warm_up_period Numeric. Duration of the warm-up period (minutes).
#' @param data_collection_period Numeric. Duration of the data collection
#'   period (minutes).
#' @param verbose Boolean. Whether to print messages as simulation runs.
#'
#' @return A named list of parameters.

create_params <- function(
  interarrival_time = 5L,
  consultation_time = 10L,
  number_of_doctors = 3L,
  warm_up_period = 30L,
  data_collection_period = 40L,
  verbose = FALSE
) {
  list(
    interarrival_time = interarrival_time,
    consultation_time = consultation_time,
    number_of_doctors = number_of_doctors,
    warm_up_period = warm_up_period,
    data_collection_period = data_collection_period,
    verbose = verbose
  )
}

Model function

Add get_mon_arrivals() and get_mon_resources().

#' Run simulation.
#'
#' @param param List. Model parameters.
#' @param run_number Numeric. Run number for random seed generation.
#'
#' @importFrom simmer add_generator get_mon_arrivals get_mon_resources run
#' @importFrom simmer simmer timeout trajectory

model <- function(param, run_number) {

  # Set random seed based on run number
  set.seed(run_number)

  # Create simmer environment
  env <- simmer("simulation", verbose = param[["verbose"]])

  # Define the patient trajectory
  patient <- trajectory("consultation") |>
    seize("doctor", 1L) |>
    timeout(function() {
      rexp(n = 1L, rate = 1L / param[["consultation_time"]])
    }) |>
    release("doctor", 1L)

  env <- env |>
    # Add doctor resource
    add_resource("doctor", param[["number_of_doctors"]]) |>
    # Add patient generator
    add_generator("patient", patient, function() {
      rexp(n = 1L, rate = 1L / param[["interarrival_time"]])
    }) |>
    # Run the simulation
    simmer::run(until = (param[["warm_up_period"]] +
                           param[["data_collection_period"]]))

  # Extract information on arrivals and resources from simmer environment
  result <- list(
    arrivals = get_mon_arrivals(env, per_resource = TRUE, ongoing = TRUE),
    resources = get_mon_resources(env)
  )
  result
}

Run the model

We now get two tables returned:

• arrivals which records the start, end and activity time of each patient with each resource.
• resources which records when the doctor resources transition between being available and unavailable.

param <- create_params()
result <- model(param = param, run_number = 1L)
result

$arrivals
        name start_time  end_time activity_time resource replication
1   patient0   3.775909  5.232976      1.457067   doctor           1
2   patient1   9.684123 14.044809      4.360686   doctor           1
3   patient2  10.383099 22.678720     12.295621   doctor           1
4   patient3  24.857942 34.423617      9.565675   doctor           1
5   patient5  28.291586 40.667622     12.376036   doctor           1
6   patient4  27.556356 41.463708     13.907351   doctor           1
7   patient6  32.101735 44.969049     10.545432   doctor           1
8   patient8  59.397626 62.766961      3.369335   doctor           1
9  patient10  65.613758 68.554962      2.941204   doctor           1
10 patient11  68.823221 69.883947      1.060726   doctor           1
11  patient9  62.671359        NA            NA   doctor           1
12  patient7  54.221407        NA            NA   doctor           1

$resources
   resource      time server queue capacity queue_size system limit replication
1    doctor  3.775909      1     0        3        Inf      1   Inf           1
2    doctor  5.232976      0     0        3        Inf      0   Inf           1
3    doctor  9.684123      1     0        3        Inf      1   Inf           1
4    doctor 10.383099      2     0        3        Inf      2   Inf           1
5    doctor 14.044809      1     0        3        Inf      1   Inf           1
6    doctor 22.678720      0     0        3        Inf      0   Inf           1
7    doctor 24.857942      1     0        3        Inf      1   Inf           1
8    doctor 27.556356      2     0        3        Inf      2   Inf           1
9    doctor 28.291586      3     0        3        Inf      3   Inf           1
10   doctor 32.101735      3     1        3        Inf      4   Inf           1
11   doctor 34.423617      3     0        3        Inf      3   Inf           1
12   doctor 40.667622      2     0        3        Inf      2   Inf           1
13   doctor 41.463708      1     0        3        Inf      1   Inf           1
14   doctor 44.969049      0     0        3        Inf      0   Inf           1
15   doctor 54.221407      1     0        3        Inf      1   Inf           1
16   doctor 59.397626      2     0        3        Inf      2   Inf           1
17   doctor 62.671359      3     0        3        Inf      3   Inf           1
18   doctor 62.766961      2     0        3        Inf      2   Inf           1
19   doctor 65.613758      3     0        3        Inf      3   Inf           1
20   doctor 68.554962      2     0        3        Inf      2   Inf           1
21   doctor 68.823221      3     0        3        Inf      3   Inf           1
22   doctor 69.883947      2     0        3        Inf      2   Inf           1

Warm-up function

To implement a warm-up period in simmer, we need to modify these output dataframes. We have produced a function to do this - filter_warmup():

#' Filters arrivals and resources to remove warm-up results.
#'
#' @param result Named list with two tables: monitored arrivals & resources.
#' @param warm_up_period Length of warm-up period.
#'
#' @importFrom dplyr ungroup arrange slice n filter
#'
#' @return The name list `result`, but with the tables (`arrivals` and
#' `resources`) filtered to remove warm-up results.
#' @export

filter_warmup <- function(result, warm_up_period) {
  # Skip filtering if the warm-up period is zero
  if (warm_up_period == 0L) return(result)

  # Arrivals: Keep only patients who came during the data collection period
  result[["arrivals"]] <- result[["arrivals"]] |>
    group_by(.data[["name"]]) |>
    filter(all(.data[["start_time"]] >= warm_up_period)) |>
    ungroup()

  # Resources: Filter to resource events in the data collection period
  dc_resources <- filter(result[["resources"]],
                         .data[["time"]] >= warm_up_period)

  if (nrow(dc_resources) > 0L) {

    # For each resource, get the last even during warm-up, and replace time
    # for that event with the start time of the data collection period
    last_usage <- result[["resources"]] |>
      filter(.data[["time"]] < warm_up_period) |>
      arrange(.data[["time"]]) |>
      group_by(.data[["resource"]]) |>
      slice(n()) |>
      mutate(time = warm_up_period) |>
      ungroup()

    # Set that last event of the resource/s as the first row of the dataframe
    # else calculations would assume all resources were idle at the start of
    # the data collection period
    result[["resources"]] <- rbind(last_usage, dc_resources)

  } else {
    # No events after warm-up; use filtered resource table as is
    result[["resources"]] <- dc_resources
  }

  result
}

Explaining the warm-up function…

#' Filters arrivals and resources to remove warm-up patients.
#'
#' @param result Named list with two tables: monitored arrivals & resources.
#' @param warm_up_period Length of warm-up period.
#'
#' @importFrom dplyr ungroup arrange slice n filter
#'
#' @return The name list `result`, but with the tables (`arrivals` and
#' `resources`) filtered to remove warm-up patients.
#' @export

filter_warmup <- function(result, warm_up_period) {

The function accepts two inputs: result and warm_up_period.

# Skip filtering if the warm-up period is zero
if (warm_up_period == 0L) return(result)

If warm_up_period is zero, the function instantly returns the original results list unchanged, as no filtering is needed.

# Arrivals: Keep only patients who came during the data collection period
result[["arrivals"]] <- result[["arrivals"]] |>
  group_by(.data[["name"]]) |>
  filter(all(.data[["start_time"]] >= warm_up_period)) |>
  ungroup()

The arrivals table is filtered to remove patients who arrived during the warm-up period (even if they have activity times after warm-up).

# Resources: Filter to resource events in the data collection period
dc_resources <- filter(result[["resources"]],
                       .data[["time"]] >= warm_up_period)

The resources table is filtered so it only includes events that occurred after the warm-up period.

if (nrow(dc_resources) > 0L) {

  # For each resource, get the last even during warm-up, and replace time
  # for that event with the start time of the data collection period
  last_usage <- result[["resources"]] |>
    filter(.data[["time"]] < warm_up_period) |>
    arrange(.data[["time"]]) |>
    group_by(.data[["resource"]]) |>
    slice(n()) |>
    mutate(time = warm_up_period) |>
    ungroup()

  # Set that last event of the resource/s as the first row of the dataframe
  # else calculations would assume all resources were idle at the start of
  # the data collection period
  result[["resources"]] <- rbind(last_usage, dc_resources)

} else {
  # No events after warm-up; use filtered resource table as is
  result[["resources"]] <- dc_resources
}

return(result)

The resources table requires an extra change: we add a row for each resource representing their last known state (i.e., number of resources occupied) from the warm-up period, settings its timestamp to the start of data collection.

Without this step, any statistics (e.g., utilisation) would falsely assume the resources were unused at the beginning of the data collection window. This adjustments preserves the true initial state of each resource at that timepoint.

Run filter_warmup()

Our warm-up period is 30:

param[["warm_up_period"]]

[1] 30

We can see that both tables now have no start_time or time before 30.

We can also see the first row in resources setting the state at the start of the data collection period.

filter_warmup(result = result, warm_up_period = param[["warm_up_period"]])

$arrivals
# A tibble: 6 × 6
  name      start_time end_time activity_time resource replication
  <chr>          <dbl>    <dbl>         <dbl> <chr>          <int>
1 patient6        32.1     45.0         10.5  doctor             1
2 patient8        59.4     62.8          3.37 doctor             1
3 patient10       65.6     68.6          2.94 doctor             1
4 patient11       68.8     69.9          1.06 doctor             1
5 patient9        62.7     NA           NA    doctor             1
6 patient7        54.2     NA           NA    doctor             1

$resources
# A tibble: 14 × 9
   resource  time server queue capacity queue_size system limit replication
   <chr>    <dbl>  <int> <int>    <dbl>      <dbl>  <int> <dbl>       <int>
 1 doctor    30        3     0        3        Inf      3   Inf           1
 2 doctor    32.1      3     1        3        Inf      4   Inf           1
 3 doctor    34.4      3     0        3        Inf      3   Inf           1
 4 doctor    40.7      2     0        3        Inf      2   Inf           1
 5 doctor    41.5      1     0        3        Inf      1   Inf           1
 6 doctor    45.0      0     0        3        Inf      0   Inf           1
 7 doctor    54.2      1     0        3        Inf      1   Inf           1
 8 doctor    59.4      2     0        3        Inf      2   Inf           1
 9 doctor    62.7      3     0        3        Inf      3   Inf           1
10 doctor    62.8      2     0        3        Inf      2   Inf           1
11 doctor    65.6      3     0        3        Inf      3   Inf           1
12 doctor    68.6      2     0        3        Inf      2   Inf           1
13 doctor    68.8      3     0        3        Inf      3   Inf           1
14 doctor    69.9      2     0        3        Inf      2   Inf           1

🔍 Explore the example models

🩺 Nurse visit simulation

Click to visit pydesrap_mms repository

Key file	simulation/param.py simulation/model.py
What to look for?	The model has a 27-day warm-up period. The implementation of a warm-up period is like our example above, with a warm_up_complete() function that triggers a function init_results_variables() to clear results when the warm-up period has passed.

Click to visit rdesrap_mms repository

Key file	R/parameters.R R/model.R R/warmup.R
What to look for?	The model has a 27-day warm-up period. The implementation is consistent with above - with a filter_warmup() function applied to the results.

🧠 Stroke pathway simulation

Click to visit pydesrap_stroke repository

Key file	simulation/parameters.py simulation/model.py
What to look for?	The model has a 3-year warm-up period. The implementation is again consistent with above - with a warm_up() function that triggers the function reset_results() to clear results when the warm-up period has passed.

Click to visit rdesrap_stroke repository

Key file	R/parameters.R R/model.R R/warmup.R
What to look for?	The model has a 3-year warm-up period. The implementation of the warm-up period is simpler than above, as this model only uses the dataframe from get_mon_arrivals() (and not get_mon_resources()), so the filter_warmup() function is much shorter!

🧪 Test yourself

If you haven’t already, try adding a warm-up period to your model.

Task:

• Copy over the modifications above and run the model.

• Try changing the warm_up_period and data_collection_period parameters - how does this affect which patients are included in results?
